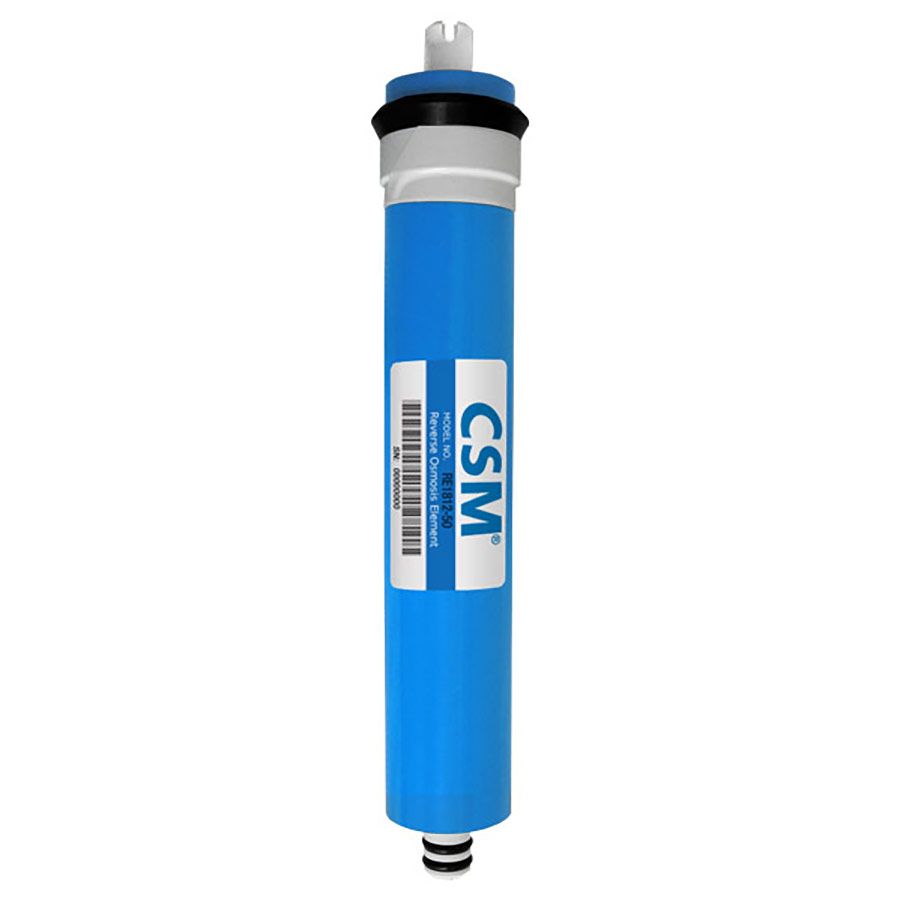

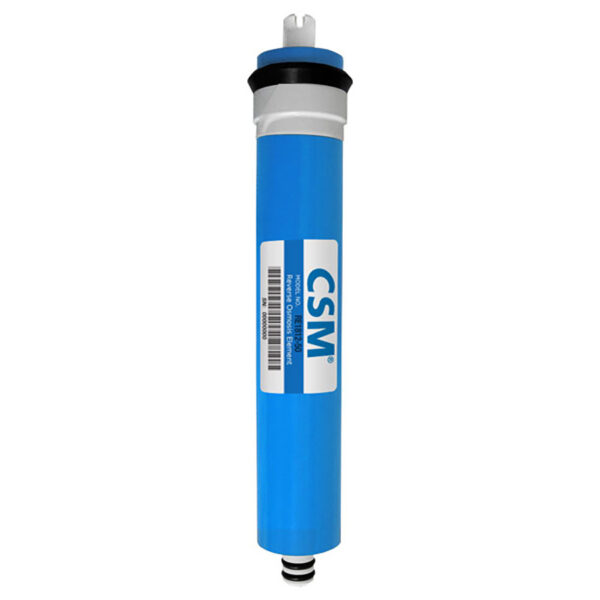

CSM 50 GPD Thin Film Composite Membrane

$36.00

  • 50 Gallons Per Day
  • Removes a wide variety of Inorganic & Organic Compounds
Average NaCl Rejection: 98%
Permeate Flow @ 60 PSI: 50 GPD

This Standard Size Reverse Osmosis Membrane fits in a standard membrane housing like the one shown on this RO unit.

The same standard membrane housing can accommodate RO membranes with capacities ranging between 18-100 gallons per day (GPD).

Specifications are based on 500 mg/L NaCl solution at 60 psi net pressure (4.1 bar), 77°F (25°C), 15% recovery after 24 hours. Individual element flux may vary ± 15%.

There is a wide range of inorganic compounds that can be removed from drinking water with this reverse osmosis membrane.

If you would like to change your membrane to a capacity other than what was originally in your Reverse Osmosis System, you must change the drain flow control also. The membrane and drain flow restrictor are sized to go together. We have a variety of drain flow restrictors available.

CSM Membrane Dimensions
A: 0.67" B: 0.87" C: 11.73" D: 1.77" E: 0.87"
Model Name Performance Dimension Testing Pressure Test Condition
Permeates Flow Rate
GPD (m3/day)
Salt Rejec-
tion %
Diam
Inch (mm)
Length
Inch (mm)
RE1812-24 25 (94) 96.0 1.8 (46) 12 (305) 60 PSI Household Standard
RE1812-35 35 (132) 96.0 1.8 (46) 12 (305) 60 PSI Household Standard
RE1812-50 45 (170) 96.0 1.8 (45) 12 (305) 60 PSI Household Standard
RE1812-60 60 (227) 96.0 1.8 (46) 12 (305) 60 PSI Household Standard
RE1812-80 80 (303) 96.0 1.8 (46) 12 (305) 60 PSI Household Standard
RE1812-100 100 (397) 96.0 2 (50) 12 (304.8) 60 PSI Household Standard
RE1812-LP 50 (189) 93.0 2.0 (50) 12 (305) 20 PSI Household LP

Additional information

Weight 1 lbs
Gallons Per Day

CSM Residential Membrane Data Sheet

Download

Cleaning, Sanitizing & Replacement Manual

Download
