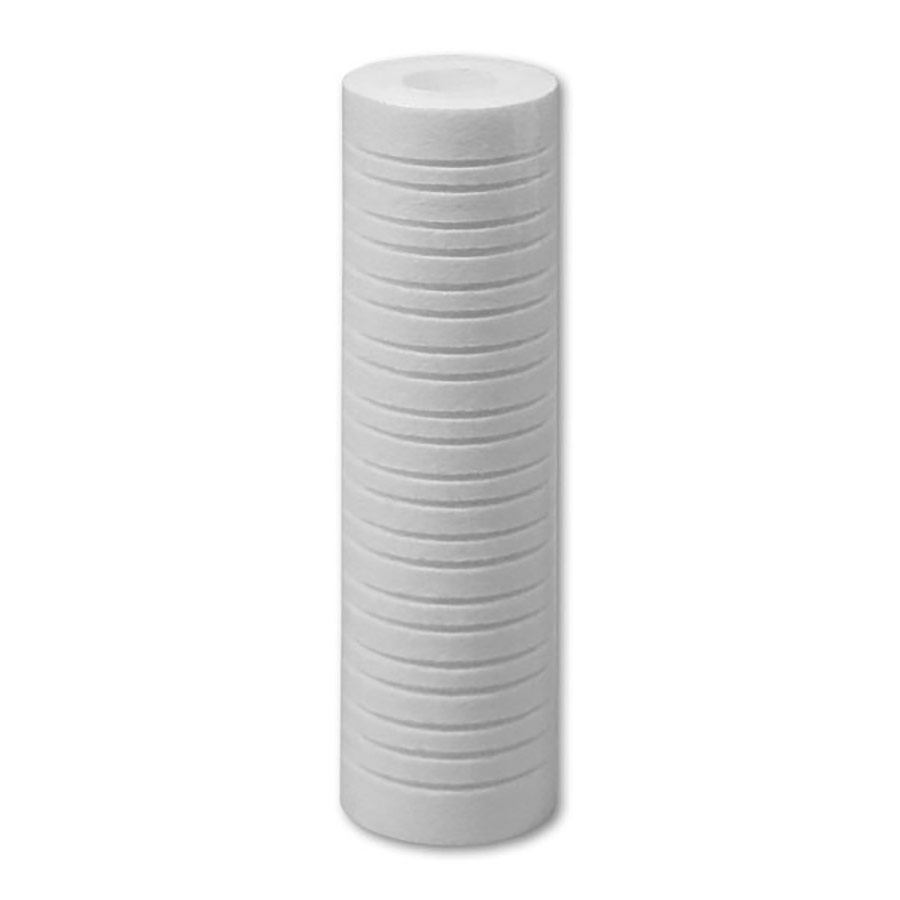

10″ x 2-1/2″, (1, 5 or 20 Micron) Grooved Melt Blown Polypropylene Filter


  • 1,5 or 20 Micron Filtration
  • Gradient Density Sediment Cartridge
  • Increased Dirt Holding Capacity
  • Grooved Cartridges with Large Surface Area
1, 5 or 20 Micron Removal of Dirt, Rust & Sediment
Industry Standard Size 10" × 2.5" Sediment Cartridge
Grooved Cartridges have increased surface area for longer life and better performance.

Features & Benefits:

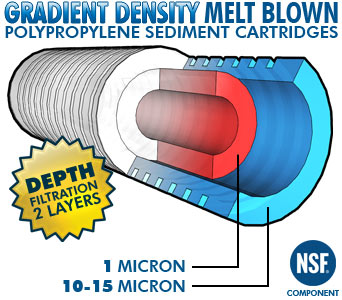

  • Gradient Density, Multi-Layered, Melt Blown Sediment Filter Cartridge.
  • Larger particles are trapped in the outer layers, smaller particles penetrate deeper.
  • Greater dirt holding ability and longer life than non-layered cartridges.
  • Thermally bonded polypropylene micro fibers for purity and chemical compatibility
  • Contains no binders, agents, solvents, antistatic materials or wetting agents
  • Meets FDA requirements for food and beverage contact
  • No leachables or extractables to contaminate
  • No surface binders to reduce flow and increase change-out frequency
  • Available in wide range of lengths and micron ratings
  • Cartridges are individually shrink wrapped


  • Whole House Sediment Filtration
  • Reverse Osmosis Prefiltration
  • Food and beverages
  • Oil and gas
  • Fine chemicals
  • Electronics
  • Metal finishing
  • Pulp and paper
1 Micron Cartridge Replaces:
  • Aqua-Pure AP1001
  • Aqua-Pure AP109
  • Watts FPMBG-1-975
Gradient Density Filters
5 Micron Cartridge Replaces:
  • Aqua-Pure AP110
  • Whirlpool WHCF-GD05
  • Watts FPMBG-5-975
Gradient Density Filters
20 Micron Cartridge Replaces:
  • Aqua-Pure AP124
  • Watts FPMBG20-975
Gradient Density Filters

Additional information

Cartridge Size

Micron Size

, ,

Material Composition

Cartridge Housing Size
