This Viqua replacement UV ballast is for UV Max ultraviolet sterilization disinfection systems.
Before ordering, confirm:
- Your UV system brand and model are UV Max
- Your current ballast part number matches 650733R-002
- The controller and power supply requirements match your system configuration
- Warranty and return terms reviewed for electrical parts
- You have the correct lamp installed or planned for replacement if needed
Best practice is to match the printed part number on the existing ballast or match the exact UV system model listed in your service documentation.

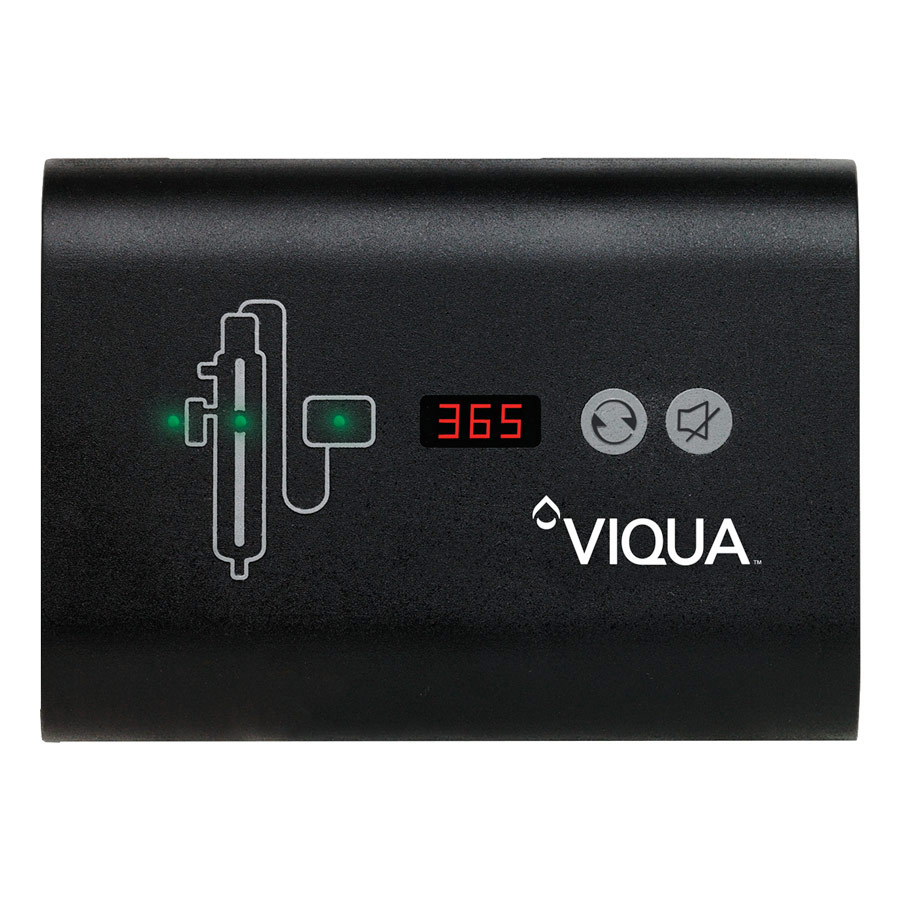

The 650733R-002 UV Max replacement ballast is the power and control component that powers and controls the UV lamp in a UV disinfection system. If a UV system will not power on, will not keep the lamp lit, or is showing electrical fault symptoms, the ballast is one of the most common replacement parts. Replacing a failing ballast helps restore stable lamp operation, allowing your UV system to run consistently.
This part is typically purchased as a direct replacement during a repair, alarm event, or preventive maintenance when electrical issues appear.
- UV Max Model B4 (650690)
- UV Max Model B4-V (650691)
- UV Max Model C4 (650692)
- UV Max Model C4-V (650693)
- UV Max Model D4 (650694-R)
- UV Max Model D4-V (650696)
- UV Max Model IHS12-D4
- UV Max Model IHS22-D4
Replacement 40W controller for D4, D4V, IHS12-D4, IHS22-D4. No dry contacts for switching external devices.
What Does a UV Ballast Do?
A UV ballast supplies and regulates the electrical power needed for the UV lamp to operate. It helps:
- Start the UV lamp
- Maintain stable lamp operation during runtime
- Support the system’s monitoring and alarm behavior depending on the controller design
If the ballast fails, the UV lamp may not start reliably or shut off unexpectedly, compromising disinfection continuity.
Common Reasons to Replace a Ballast
Replace the ballast when you see symptoms such as:
- UV system will not power on
- UV lamp does not light or will not stay lit
- Intermittent operation, flickering, or repeated restarts
- Electrical alarms or warning indicators tied to lamp power
- Visible damage, corrosion, or burned odor near the electrical compartment
Before replacing, it is still smart to confirm:
- The outlet is working and delivering power
- Connections are seated properly
- The lamp is correctly installed and not at end-of-life
Installation for the 650733R-002 Viqua Replacement UV Ballast
A ballast replacement is usually a straightforward service task, but safety matters.
Service reminders
- Shut off power to the UV system before opening any electrical compartment.
- Allow components to cool if the system has been running.
- Keep the work area dry and follow the system’s service instructions.
Typical replacement steps
- Power off the UV system at the outlet or breaker.
- Open the controller or electrical housing as directed.
- Photograph wiring connections before disconnecting.
- Disconnect the existing ballast and remove it from the mount.
- Install the new ballast in the same orientation.
- Reconnect wiring securely and close the housing.
- Restore power and confirm the lamp starts and the system returns to normal status.
- Verify alarms clear and the system remains stable.
If you are not comfortable with electrical service, use a qualified technician.
FAQs on a Replacement UV Ballast
Q: What does the UV Max ballast do?
A: It supplies and regulates power for the UV lamp so the lamp can start and run steadily.
Q: How do I know if my ballast is bad?
A: Common signs include the lamp not lighting, intermittent operation, or electrical alarms tied to lamp power.
Q: Should I replace the UV lamp at the same time?
A: If the lamp is near its replacement interval or you are already servicing the unit, many people replace the lamp at the same time to reduce repeat downtime.
Q: Will this ballast fit any UV system?
A: No. It must match your UV Max system model and the correct part number.
Q: Can a bad ballast cause alarms even if the lamp is new?
A: Yes. A failing ballast can trigger lamp-related alarms or prevent reliable lamp operation.
Q: Can I install a replacement UV ballast myself?
A: Some homeowners can if they are comfortable with safe electrical service. If not, use a qualified technician.
Q: Do I need to shut off the water to replace a UV ballast?
A: Usually no, because the ballast is an electrical component. You should still power off the unit and follow your system’s service instructions.
Q: What else should I check before replacing the ballast?
A: Confirm the outlet works, wiring is secure, and the lamp is properly installed. If those are correct and symptoms persist, ballast replacement is a common next step.
