Media Calcite

Calcite Mineral

Calcite Media

Calcite is a naturally occurring calcium carbonate media. One of the advantages of Calcite is its self-limiting property. When properly applied, it corrects pH only enough to reach a non-corrosive equilibrium. It does not overcorrect under normal conditions. Upon contact with Calcite, acidic waters slowly dissolve the calcium carbonate to raise the pH which reduces the potential leaching of copper, lead and other metals found in typical plumbing systems. Periodic backwashing will prevent packing, reclassify the bed and maintain high service rates. Depending on pH, water chemistry and service flow, the media bed will have to be periodically replenished as the the media is depleted.

As the Calcite’s calcium carbonate neutralizes the water, it will increase hardness and a softener may become necessary after the neutralizing filter.

Calcite can be effectively combined with Clack Calcite to combine the high flow neutralization properties of the media, along with the slower reacting low flow properties of the media, increasing the ability to correct low pH.

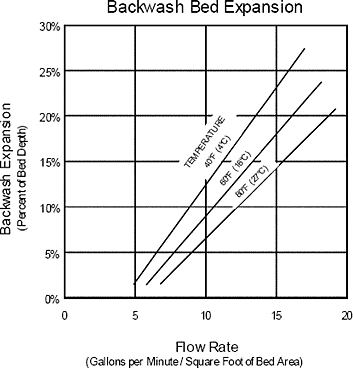

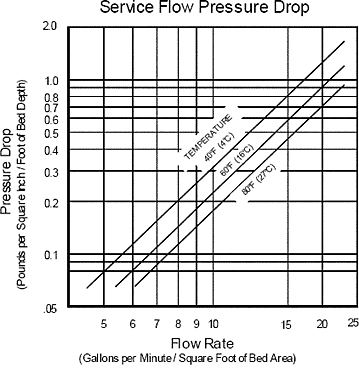

Calcite Media Flow Rate versus Pressure Drop Graph Calcite Media Flow Rate versus Backwash Expansion Graph

Text and images have been taken from the Clack Corporation web site.

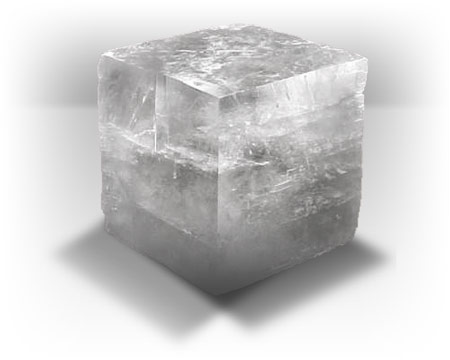

Calcite is a crushed and screened white marble media which can inexpensively be used to neutralize acidic or low pH waters to a neutral, less corrosive effluent.

Low uniformity coefficient for maximum contact for controlled pH correction
Slower reacting for controlled pH correction

Physical Properties
Color Near white
Bulk Density 90 lbs./cu. ft.
Mesh Size 16 × 40
Specific Gravity 2.7 gm/cc
Effective Size 0.4 mm
Uniformity Coefficient 1.5
Composition CaCO3, 95% min.
MgCO3, 3.0% max.

Conditions for Operation
A gravel support bed is recommended
Water pH range 5.0-7.0
Bed depth 24-30 in.
Freeboard 50% of bed depth (min.)
Backwash rate 8-12 gpm/sq. ft.
Backwash Bed Expansion 35% of bed depth
Service flow rate 3-6 gpm/sq. ft. but may be modified to adapt to local conditions
