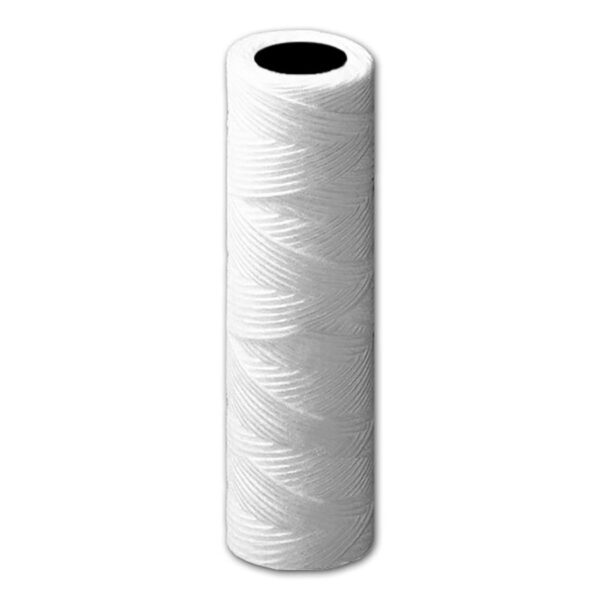

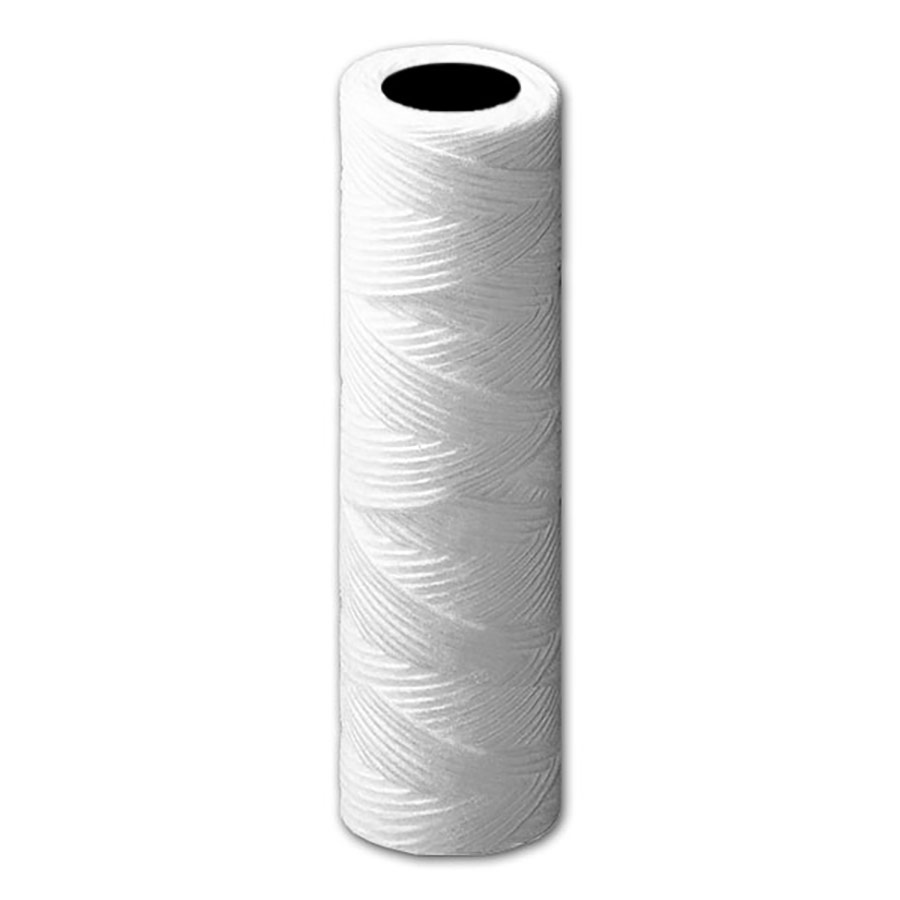

The Shelco 10″ x 2.5″ wound sediment filter cartridge is a depth-style sediment filter designed to capture particles such as dirt, sand, silt, and rust, with the added benefit of handling higher temperatures than standard cartridges. String-wound cartridges are often chosen when you want reliable particle-loading capacity, consistent filtration throughout the media depth, and a straightforward replacement schedule.
This cartridge is commonly used as a prefilter to protect downstream equipment, valves, membranes, and specialty filtration stages.
Shelco 10″ x 2.5″ Sediment Filter Cartridge for High Temperature (5, 20, or 50 Micron) Features and Benefits:
- Industry standard size 10″ × 2.5″ sediment cartridge
- Polypropylene fibers for purity and chemical compatibility
- 5, 20, or 50 micron rated string wound cartridge to remove dirt, rust, and sediment
- Meets FDA requirements for food & beverage contact
- High-temp cartridges with stainless steel center tubes rated for temperatures up to 180°F (82.2°C)
- Packaged in poly bags for cleanliness
What is the 10″ x 2.5″ Wound Sediment Filter Cartridge Best Used For?
Primary use
- Sediment reduction in applications where temperature or operating conditions require a high temperature-rated cartridge
Common scenarios
- Industrial or commercial water lines with warmer process water
- Prefiltration before RO, DI, UV, or specialty media to prevent fouling
- Systems that need dependable depth filtration and good dirt holding capacity
How Does String Wound Filtration Work?
String-wound cartridges filter through layers of wound media. As water passes through, particles are trapped throughout the cartridge rather than just on the surface. That depth filtration can help with:
- Better dirt holding capacity in many sediment-heavy applications
- More consistent filtration through the cartridge life
- Predictable replacement based on pressure drop and visual loading
Choosing the right micron rating
Micron rating is the most important factor when choosing sediment cartridges.
General guidance
- Higher micron catches larger particles and usually lasts longer in heavy sediment.
- Lower micron captures finer particles but can plug faster depending on sediment load.
If you are using this as a prefilter for sensitive downstream equipment, choose a micron rating that balances protection and flow.
When Should the 10″ x 2.5″ Wound Sediment Filter Cartridge Be Replaced?
Replace when:
- Flow drops noticeably
- Differential pressure across the housing increases
- You see heavy discoloration or loading
- You have reached your planned maintenance interval for the application
For high-temp applications, routine monitoring is invaluable because conditions can vary by process and season.
Where to place it in a system
Most commonly installed as an early stage:
- Before carbon filtration to prevent premature loading
- Before RO or DI to reduce fouling and extend the life of downstream stages
- Before UV to reduce turbidity and support consistent performance
FAQs on String-Wound Sediment Filter Cartridges
Q: What does a string-wound sediment cartridge remove?
A: It removes physical particles like sand, silt, rust, and dirt that cause cloudiness and buildup.
Q: What does high temp mean for a water filter cartridge?
A: It is designed for applications where water temperature is higher than standard cartridge limits. Always match the cartridge temperature rating to your system conditions.
Q: Is this better than a pleated sediment filter?
A: String-wound cartridges provide depth filtration and strong dirt-holding capacity. Pleated filters offer more surface area and are sometimes washable. The better choice depends on your sediment type, maintenance preference, and temperature needs.
Q: Will a sediment water filter reduce chlorine taste and odor?
A: No. Sediment cartridges target particles. Carbon filtration is used for chlorine taste and odor.
Q: How do I choose the right micron rating?
A: Choose based on sediment load and downstream protection needs. Finer filtration captures smaller particles but can clog faster.
Q: Will a sediment filter reduce my water pressure?
A: Any sediment cartridge can reduce flow if it becomes loaded or if it is undersized for the application. Replacing on schedule helps maintain flow.
Q: Does this sediment filter cartridge fit a standard 10-inch housing?
A: It fits standard 10-inch housings that match the cartridge diameter and style. Confirm housing dimensions and cartridge size before ordering.
Q: Can I use a wound sediment filter cartridge before RO or DI systems?
A: Yes. Sediment prefiltration is commonly used to protect RO membranes and DI resin from premature fouling.
Choose a high-temp, string-wound sediment cartridge to protect downstream filtration, maintain cleaner water lines, and keep performance steady in higher-temperature applications.
About Shelco:
Shelco has created the MicroSentry cartridge, setting a higher standard for industries requiring cartridge filtration. Shelco equipment makes achieving precision patterns a standard procedure. State-of-the-art computerized production machinery removes the variables from custom winding and enables the production of filter cartridges that are accurately wound from a single strand of specially selected fibrous roving material around a perforated core in a nearly perfect geometric pattern.
