Warning: This is not a pressure tank for well pump applications. It is not suitable for that purpose.

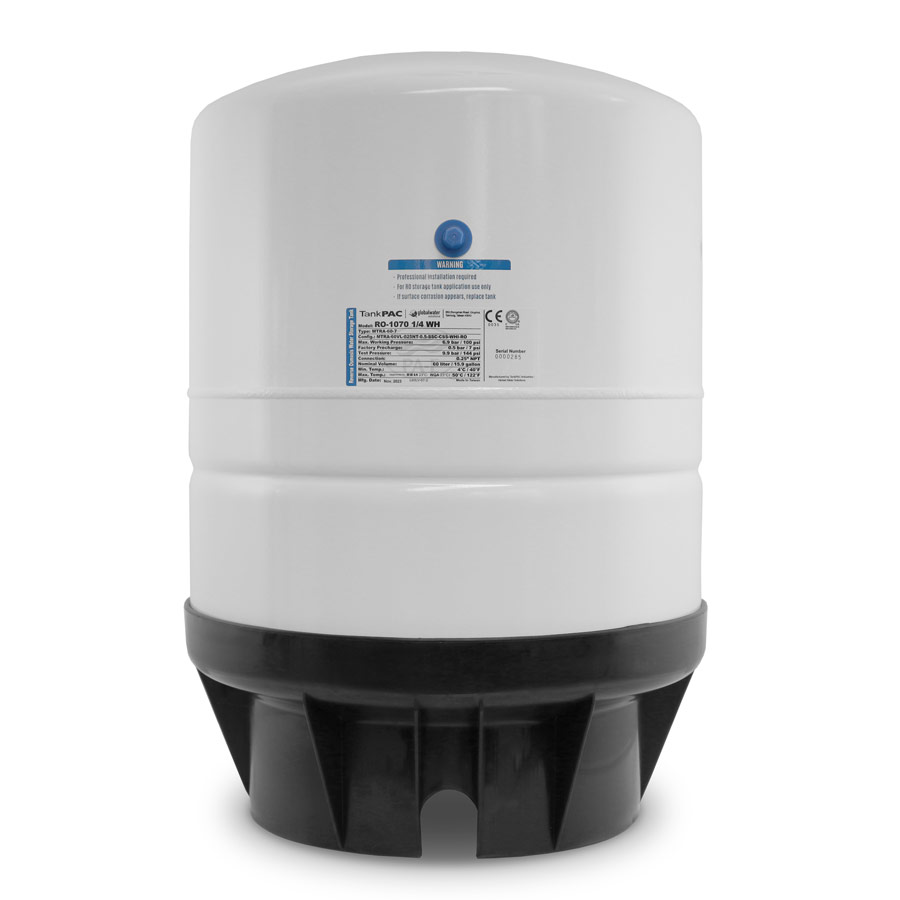

14-Gallon White-colored steel reverse osmosis water storage tank.
RO-1070-1/4-WH can be used as a replacement part, upgrade, or additional tank for any Reverse Osmosis System.
Dimensions: 23″ (Height) x 15.35″ (Diameter)

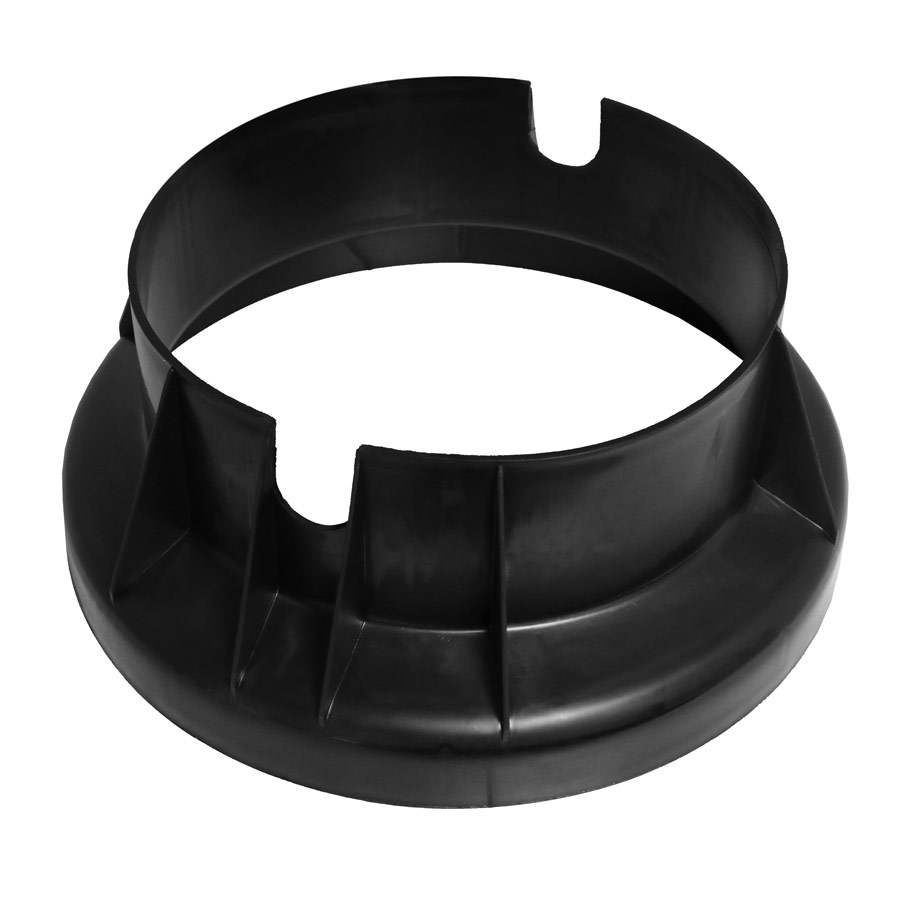

1″ connection on tank supplied with reducer and ball valve to accept 3/8″ tubing. Tank can sit on stand with connection port on the top or bottom of the tank.
| Water Pressure | Water Capacity | Water Pressure | Water Capacity |
|---|---|---|---|
| 15 PSIG | 3.69 gal | 40 PSIG | 8.35 gal |
| 20 PSIG | 5.28 gal | 45 PSIG | 8.73 gal |
| 25 PSIG | 6.46 gal | 50 PSIG | 9.10 gal |
| 30 PSIG | 7.22 gal | 55 PSIG | 9.44 gal |
| 35 PSIG | 7.91 gal | 60 PSIG | 9.79 gal |
