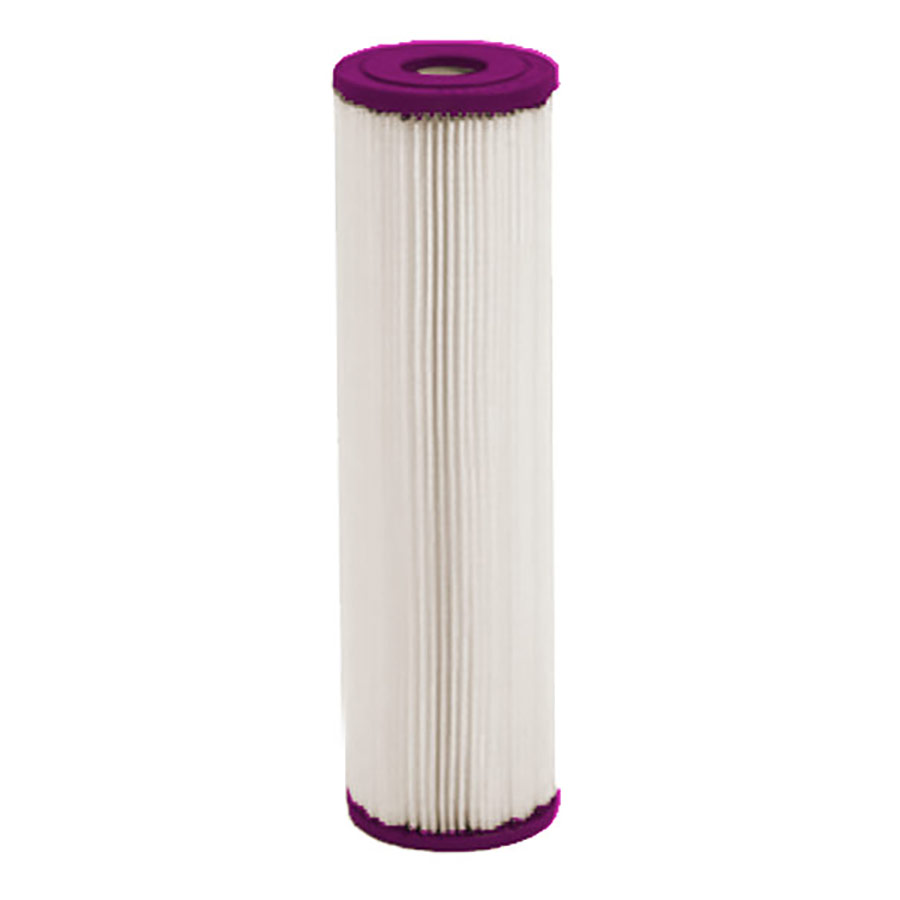

Harmsco 9.75 x 2.5 1 Micron Absolute Pleated Cartridge

$32.00 - $35.00

Qty Price Ea.
12 $34.00
24 $33.00
45 + $32.00
Price Per Unit
PP-S-1$32.00 - $35.00
$32.00 - $35.00
  • Pleated Cartridge with Large Surface Area
  • Increased Capacity for Sediment Removal
  • High Flow Rate
  • Color Coded End Cap
  • Cleanable & Reusable

1 Micron Absolute Removal of Cysts, Dirt, Rust & Sediment
Industry Standard Size 10" × 2.5" Pleated Cartridge
This Cartridge Replaces:
  • Flow-Max FM-1A-975 (10″ x 2-1/2″)

Highly efficient filter cartridges made of pleated Polyester-Plus filter media. The industry’s largest surface area.

Features

  • Pleated design for more surface area
  • FDA approved materials – NSF 61 certified
  • Engineered media for superior performance
  • Cleanable and reusable in most applications and micron sizes
  • Thermally bonded end caps to ensure better sealing

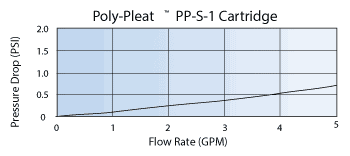

Harmsco PolyPleat Pressure Chart

Benefits

  • Lower overall operating cost
  • Longer filter runs for fewer change outs
  • Lower initial pressure drops
  • Reduced maintenance down time and cost
  • Increased contaiminant removal
  • High flow capability

Applications

  • Reverse Osmosis Pre-filtration
  • Municipal Drinking Water Filtration
  • Commercial/Resdiential Drinking Water Filtration
  • Desalination Pre-filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food & Beverage Filtration
  • Marine/Aquatic Filtration

Specifications:

  • Micron rating – One micron absolute for cryptosporidium and giardia cysts
  • Filter media – Meltblown polypropylene inner layer with outer layers of polypropylene scrim material for support
  • Temperature – 140°F (standard cartridges)
  • Center tubes – Rigid PVC with perforations or molded polypropylene
  • Flow rate – Up to 0.5 GPM ft² media
  • Media (sq ft) – 3.7

Additional information

Cartridge Size

Micron Size

Cartridge Housing Size

Country of Origin
