Big-Bubba Industrial Polypropylene Filter Housing


Industrial polypropylene Big-Bubba filter housing is ideal for a wide range of applications.
Cartridges for Big Bubba System are sold separately.
View replacement cartridges in the Add-ons/Accessories below.

Industrial Polypropylene Big-Bubba Filter Housing

  • Rugged construction
    Big-Bubba filter housings are made of rugged, glass-reinforced polypropylene so they will not chip, rust, or dent.
    And because all wetted surfaces are non-metallic, they are ideal when chemical compatibility
    is an issue and for seawater applications
  • Applications
    • Commercial filtration
    • Industrial filtration
    • Pre-filtration for RO equipment
    • Community water systems
    • Sea water applications due to their non-corrosive construction
    • Replacement for bag filters for more filter area
    • Replacement for multiple cartridge filters for greater convenience
  • Low Pressure Drop
    Big-Bubba filter housings are designed to minimize pressure drop, by using 2″ pipe fittings and a large diameter center tubes for Big-Bubba filter cartridges.

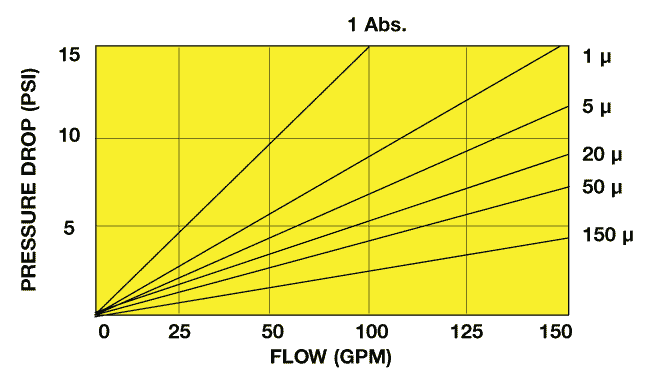

    (See chart below for pressure drop data using pleated cartridges.)

Big Bubba Dimensions for Big-bubba filter housing

Big Bubba Dimensions

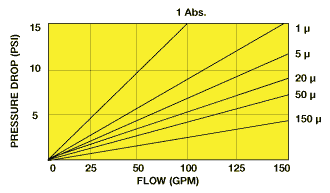

Big Bubba Flow Chart for Big-bubba filter housing
  • Proprietary Cartridges
    We offer a full line of replacement cartridges for Big-Bubba filters, all with double o-ring seals for superior performance. Cartridges are easy to install, easy to service and easy to replace.
  • Low cost
    Big-Bubba filters are an economical replacement for stainless steel filtration equipment because of their non-metallic construction and today’s high cost of stainless steel!
  • Double o-rings
    For superior sealing.
  • Two Outlets
    Big-Bubba filters have two outlets on opposite sides to allow more flexibility with piping configurations. Filter may be installed in-line or piping may come from the same direction. A plug is provided for the outlet, not used.
  • E-Z change out
    Cartridge replacement is easy as 1-2-3:

    1. Remove swing bolts.
    2. Remove lid.
    3. Rotate cartridge 1/4 turn and pull-up.

Additional information

Material Composition

Big Bubba System Specifications


Big Bubba Diagram


Parts / Accessories
