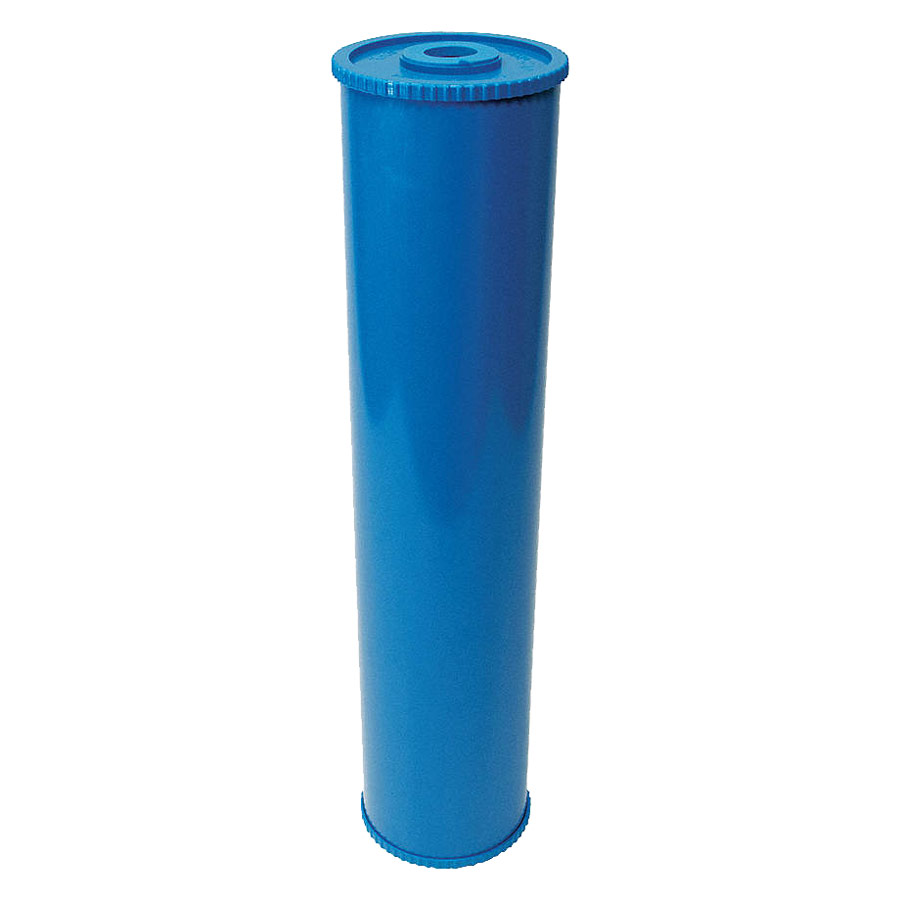

The Aries 20” x 4.5” high-purity mixed DI resin filter (AF-20-4010-BB) is a high-purity deionization resin designed to help produce low-conductivity water by removing remaining dissolved ions. DI resin is commonly used as a polishing stage after other filtration steps, especially reverse osmosis, when very clean water is needed for specific applications.
This cartridge is typically selected when water quality goals extend beyond taste and odor, and you are targeting higher-purity water for equipment, processes, or specialty use.
AF Series cartridges are double-open-end cartridges that fit standard residential and industrial housings. They are available in 2-1/2″ and 4-1/2″ diameters and 5″, 10″, and 20″ lengths. Using premium Resintech media and offering oversized cartridge cavities, AF Series cartridges provide the best in water purification and filtration.
Application: What is DI Resin Used For?
Deionization resin is used to remove charged ions from water, thereby lowering conductivity and total dissolved ions. Many users add DI resin when they want cleaner water for applications where mineral content can cause spotting, scaling, or performance issues.
Add a DI polishing stage to achieve higher-purity water, then monitor conductivity to replace the cartridge at the right time and maintain consistent performance.
Common scenarios
- Final polishing after reverse osmosis for higher purity water
- Laboratories, testing, and research environments
- Window and glass cleaning applications where spotting is a concern
- Specialty equipment and process water needs where low ion content matters
- Aquariums and reef setups that require purified water (when paired with appropriate upstream filtration)
Where it fits in a system
A typical setup is sediment and carbon prefiltration, followed by reverse osmosis, and DI resin as the final polishing stage.
How Long Does DI Resin Last?
DI resin life varies widely because it depends on what the resin is removing. The cleaner the water entering the cartridge, the longer it lasts.
Key factors that affect life
- TDS level and ion load of the incoming water
- Whether you use reverse osmosis upstream
- Total gallons processed
- Desired purity target and acceptable conductivity
- Water temperature and flow rate
How to monitor performance
- Use a TDS meter or conductivity meter before and after the DI stage.
- When output readings start to rise consistently, the resin is nearing exhaustion and should be replaced.
- For critical applications, replace before you hit your maximum allowable conductivity or TDS.
Specifications: Aries 20” x 4.5” High-Purity Mixed DI Resin Filter (AF-20-4010-BB)
Use the exact values from your product listing where available. This table is designed to be easy for shoppers and search engines to parse.
| Spec | Value |
|---|---|
| Product name | Aries High Purity DI Resin Cartridge |
| Model | AF-20-4010-BB |
| Cartridge size | 20-inch x 4.5-inch Big Blue style |
| Resin type | High purity DI resin (mixed bed) |
| Application | DI polishing stage for low-ion water |
| Typical placement | After RO or after the final filtration stage |
| Compatibility | Big Blue 20-inch housings that accept 4.5-inch diameter cartridges |
| Monitoring | Conductivity or TDS meter recommended |
| Replacement trigger | Rising conductivity or TDS after the DI stage |
Buyer tips: choosing the right DI cartridge
- Match your housing size first. This is a 20-inch Big Blue-style cartridge.
- For longer resin life, use RO upstream whenever possible.
- If your application is sensitive, monitor output regularly and replace early.
FAQs About Deionization Resin and the Aries 20” x 4.5” High-Purity Mixed DI Resin Filter (AF-20-4010-BB)
Q: What does a DI resin cartridge remove?
A: It removes remaining dissolved ions, lowering conductivity and helping produce higher purity water.
Q: Do I need reverse osmosis before DI resin?
A: It is strongly recommended. RO reduces the ion load, allowing the DI resin to last much longer.
Q: How do I know when the DI resin is exhausted?
A: When conductivity or TDS readings after the DI stage begin rising consistently, it is time to replace the cartridge.
Q: Will DI resin improve taste and odor?
A: DI resin is mainly for purity and ion removal, not taste and odor. Carbon filtration is typically used for taste and odor.
Q: Will this fit my housing?
A: It fits 20-inch Big Blue housings designed for 4.5-inch diameter cartridges. Confirm your housing size before ordering.
Q: Is this used for spot-free water?
A: Yes, DI resin is commonly used to help reduce spotting in applications where minerals cause residue, especially when used after RO.
Comparing the Aries 20″ x 4.5″ High-Purity Mixed DI Resin Filter to Others
| Model | Dimensions | Flow Rate (GPM) | Capacity (grains) | |
|---|---|---|---|---|
| Operating | Maximum | |||
| AF-10-4010 | 10″ × 2-1/2″ | 0.2 | 0.3 | 450 |
| AF-20-4010 | 20″ × 2-1/2″ | 0.2 | 0.6 | 900 |
| AF-10-4010-BB | 10″ × 4-1/2″ | 0.5 | 0.8 | 1,050 |
| AF-20-4010-BB | 20″ × 4-1/2″ | 0.5 | 1.5 | 2,350 |
