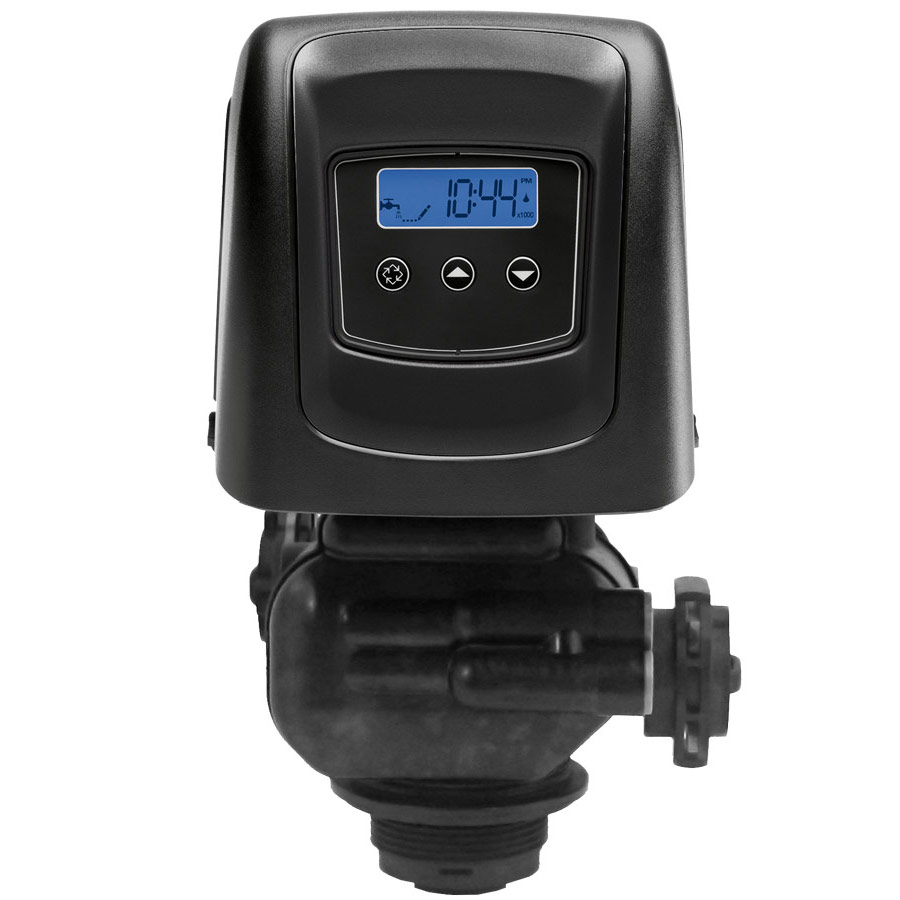

Model #5812 (Timer Control)
Product Features
- Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
- Continuous service flow rate of 43 GPM with a backwash of 33 GPM
- Backwash capability accommodates softener tanks up to 24" and filters up to 24" in diameter
- Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
- Time-tested, hydraulically-balanced piston for service and regeneration
- Optical sensor for precision cycle positioning
- Soft water refill for a cleaner brine tank
- Designed with double backwash for reduced hardness leakage
- Diagnostics for historical valve performance
- Programming stored in memory and will not be lost due to power outages
Options
- Filter or softener control valves
- Downflow co-current or upflow counter-current regeneration
- Plumbing connections in 3/4", 1" or 1-1/4" NPT, BSP, sweat, and CPVC
- Fiber-reinforced polymer high-flow bypass valve
- Variable reserve for increased efficiency
- Programmable regeneration types for increased flexibility
- Three color bezel options of black, blue, or silver
- SXT- Large LCD display with one programmable relay output for both normally open and normally closed contacts
Valve Specifications
| Valve material: | Fiber-reinforced polymer | Inlet/Outlet: | 3/4", 1" or 1-1/4" NPTF |
|---|---|---|---|
| Cycles: | 5 |
Flow Rates (50 psi Inlet) – Valve Alone – 2.5" Base
| Piston | Downflow | Upflow | Filter |
|---|---|---|---|
| Continuous (15 psi drop): | 43 GPM | 39 GPM | 37 GPM |
| Peak (25 psi drop): | 56 GPM | 51 GPM | 47 GPM |
| CV (flow at 1 psi drop): | 11.2 | 10.1 | 9.4 |
| Max. backwash (25 psi drop): | 33 GPM | 36 GPM | 45 GPM |
Regeneration
| Downflow/Upflow: | Both | Adjustable cycles: | Yes |
|---|---|---|---|
| Time available: | 0 – 199 min/cycle |
Meter Information (not applicable to timer model)
| Meter accuracy range: | 2 – 40 GPM ± 5% | Meter capacity range (gal.): | Standard: 1 – 999,900 |
|---|
Dimensions
| Distributor pilot: | 1.05" O.D. | Drain line: | 1.5" NPT Quick Connect |
|---|---|---|---|
| Brine line: | 3/8" or 1/2" Quick Connect | Mounting base: | 2-1/2" – 8 NPSM |
| Height from top of tank: | 12" | Riser Height; | 1/4" Below top of tank |
Typical Applications
| Water softener: | 8"- 24" diameter | Filters: | 8"- 24" diameter |
|---|
Additional Information
| Electrical rating: | 12v DC | Estimated Shipping Weight | 12 lbs. |
|---|---|---|---|
| Pressure: | |||
| Hydrostatic: | 300 psi | Working: | 20 – 125 psi |
| Temperature: | |||
| Cold Water Valve: | 34 – 110°F (1-43°C) | ||
