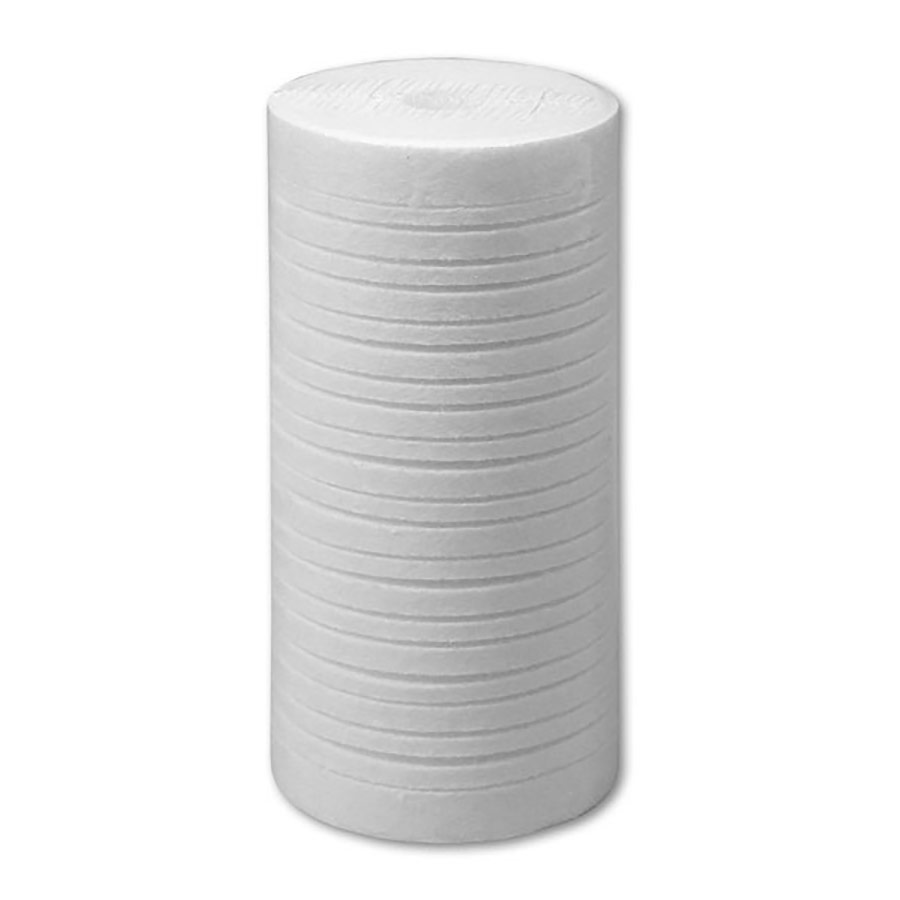

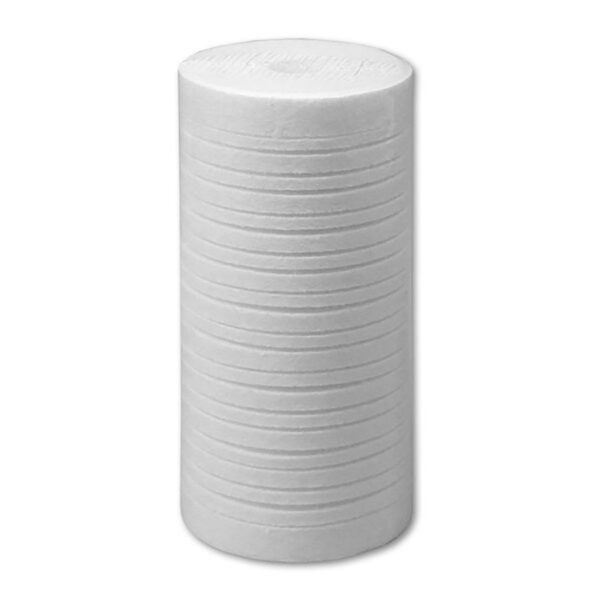

10″ x 4-1/2″ (5 or 20 Micron) Grooved Melt Blown Polypropylene Filter


  • 5 or 20 Micron Filtration
  • Gradient Density Sediment Cartridge
  • Increased Dirt Holding Capacity
  • Grooved Cartridges with Large Surface Area
5 or 20 Micron Removal of Dirt, Rust & Sediment
BB/Full Flow Size 10" × 4.5" Sediment Cartridge
Grooved Cartridges have increased surface area for longer life and better performance.

Features & Benefits:

  • Gradient Density, Multi-Layered, Melt Blown Sediment Filter Cartridge.
  • Larger particles are trapped in the outer layers, smaller particles penetrate deeper.
  • Greater dirt holding ability and longer life than non-layered cartridges.
  • Thermally bonded polypropylene micro fibers for purity and chemical compatibility
  • Contains no binders, agents, solvents, antistatic materials or wetting agents
  • Meets FDA requirements for food and beverage contact
  • No leachables or extractables to contaminate
  • No surface binders to reduce flow and increase change-out frequency
  • Available in wide range of lengths and micron ratings
  • Cartridges are individually shrink wrapped


  • Whole House Sediment Filtration
  • Reverse Osmosis Prefiltration
  • Food and beverages
  • Oil and gas
  • Fine chemicals
  • Electronics
  • Metal finishing
  • Pulp and paper
5 Micron Cartridge Replaces:
  • Aqua-Pure AP810
20 Micron Cartridge Replaces:
  • Aqua-Pure AP811

Additional information

Weight 2 lbs
Cartridge Size

Micron Size


Material Composition

Cartridge Housing Size
