Need a replacement UV lamp? This system uses the
UV Max 602855 Replacement Lamp

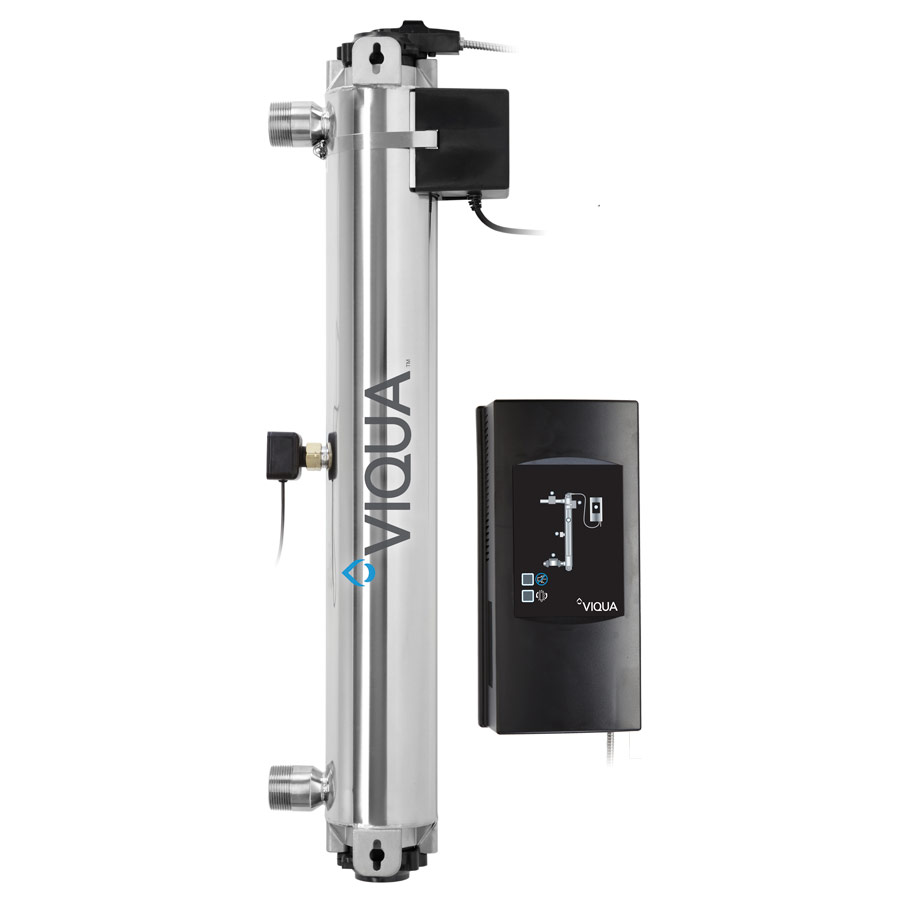

UV Max Model H Plus features 316 stainless steel reactor, intuitive interface controller with plug-and-play color coded connections, CoolTouch fan included, and features a high-output amalgam lamp with 2-year life.

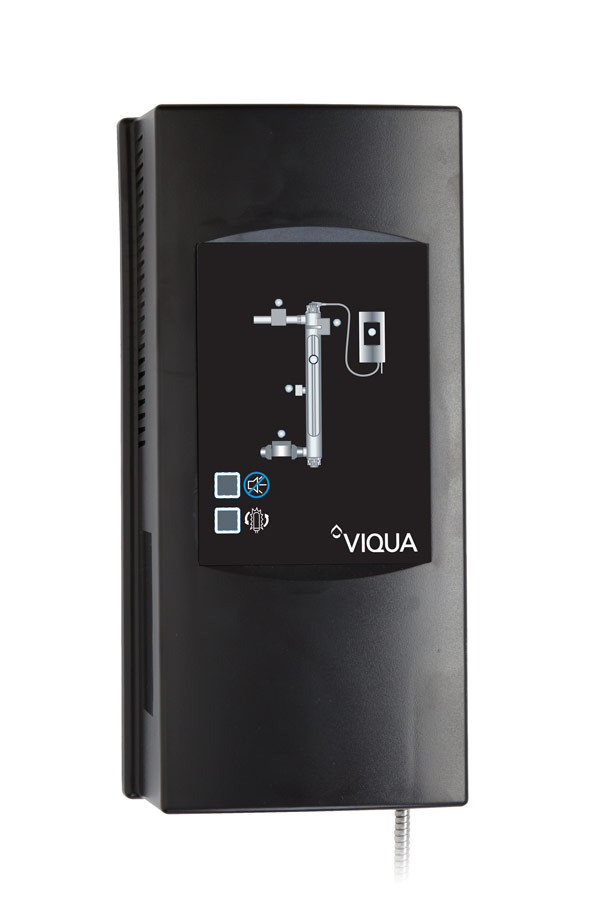

UV Max Model H Plus features included a controller with water resistant case, indicator lights on the power source showing the status of each system component. A stainless steel chamber with safety cap (can not be removed while light is on) and special lamp plug are standard.
In addition, Model H Plus also features a lamp timer reset button and mute button to silence audio alarm, along with lamp life display counter.
UV Max Model H plus is high flow rate model. With disinfection available at 45 GPM, Model H Plus is ideal for estate homes or commercial use.
Models H/Plus & K/Plus UV Max Systems include all components and accessories needed for initial installation and use. These include UV Lamp, Electronic Ballast, Quartz Sleeve & 316 Stainless Steel UV Reactor (Water Chamber).
Trojan UV Systems treat the water for the whole home, eliminating 99.99% of bacteria and viruses including chlorine-resistant cysts that are not tested for in routine water tests (such as Cryptosporidium and Giardia)
How does Ultraviolet Sterilization Work?
The germicidal energy of ultraviolet light destroys harmful microorganisms by attacking their genetic core (DNA). This powerful dose of UV light eliminates their ability to reproduce, and the organisms simply die.
Water is purified by running it through a watertight chamber that contains an ultraviolet lamp. As water flows past, microorganisms are exposed to a lethal dose of germicidal UV energy.
Purification with the UV Max is a safe, natural process that adds no chemicals and does not affect the taste or odor of your water.
Specialized, high output UV lamps maximize the output of germicidal UV energy.
- Audible/ Visual Lamp Failure Alarm
- No-tools Maintenance
- Safety Cap
- Electronic Power Supply
- Mounting Bracket
- 1" FNPT / 1-1/4" NPT Combo Port
- Iron less than 0.3 ppm
- Hardness less than 7 grains (120 ppm)
- UV transmittance greater than 75%
