Description
Need a replacement parts? This system uses this lamp and sleeve

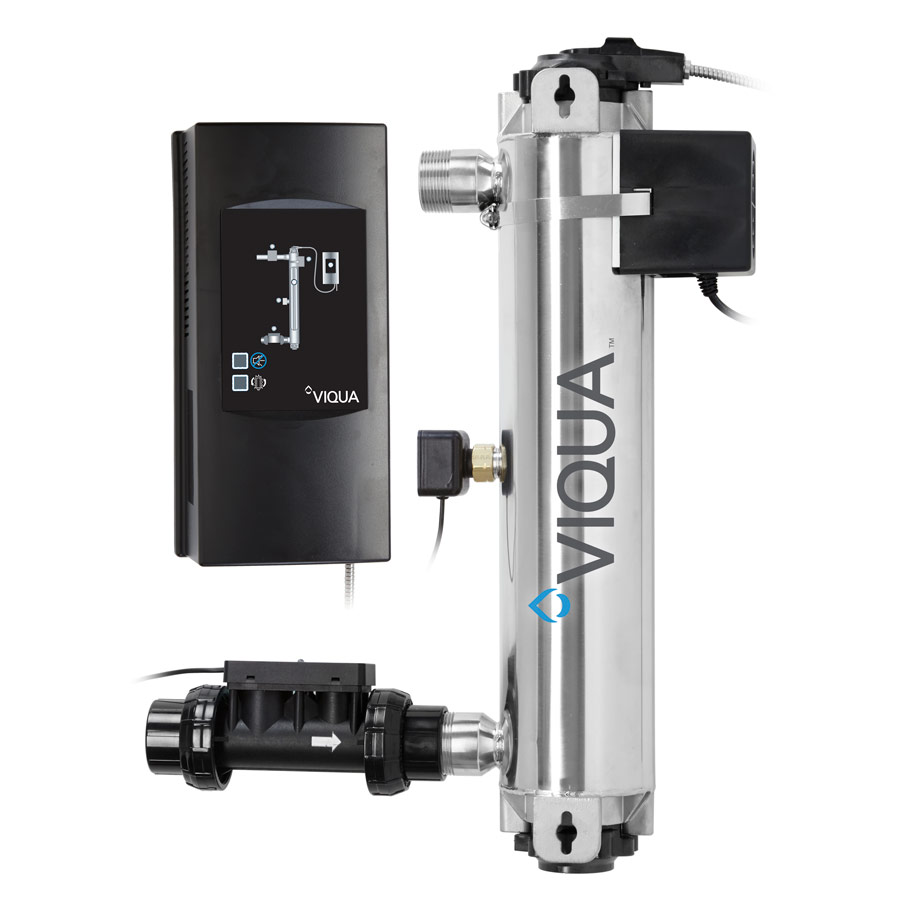

UV Max PRO Series Models are NSF Certified & Include UV Intensity Monitor, Timer, Alarm Reset, Lamp Life Display & Alert, Digital Display, Cooltouch Kit & Shut-off Valve as standard features.
All UV Max PRO Series Systems include all components and accessories needed for initial installation and use. These include UV Lamp, Power Supply, Quartz Sleeve & 316 Stainless Steel UV Reactor (Water Chamber).
UV Max Pro Series UV Systems treat the water for the whole home, eliminating 99.99% of bacteria and viruses including chlorine-resistant cysts that are not tested for in routine water tests (such as Cryptosporidium and Giardia)
How does Ultraviolet Sterilization Work?
The germicidal energy of ultraviolet light destroys harmful microorganisms by attacking their genetic core (DNA). This powerful dose of UV light eliminates their ability to reproduce, and the organisms simply die.
Water is purified by running it through a watertight chamber that contains an ultraviolet lamp. As water flows past, microorganisms are exposed to a lethal dose of germicidal UV energy.
Purification with the UV Max is a safe, natural process that adds no chemicals and does not affect the taste or odor of your water.
Specialized, high output UV lamps maximize the output of germicidal UV energy.
Standard Features
- Audible/ Visual Lamp Failure Alarm
- No-tools Maintenance
- Safety Cap
- Electronic Power Supply
- 1" FNPT / 1-1/4" NPT Combo Port
Operating Parameters
- Iron less than 0.3 ppm
- Hardness less than 7 grains (120 ppm)
- UV transmittance greater than 75%
