Replacement Cartridges, Filters and Membranes
Aries Filter Works Cartridges
Aries Heavy Metals Removal Cartridges

Click for a larger image

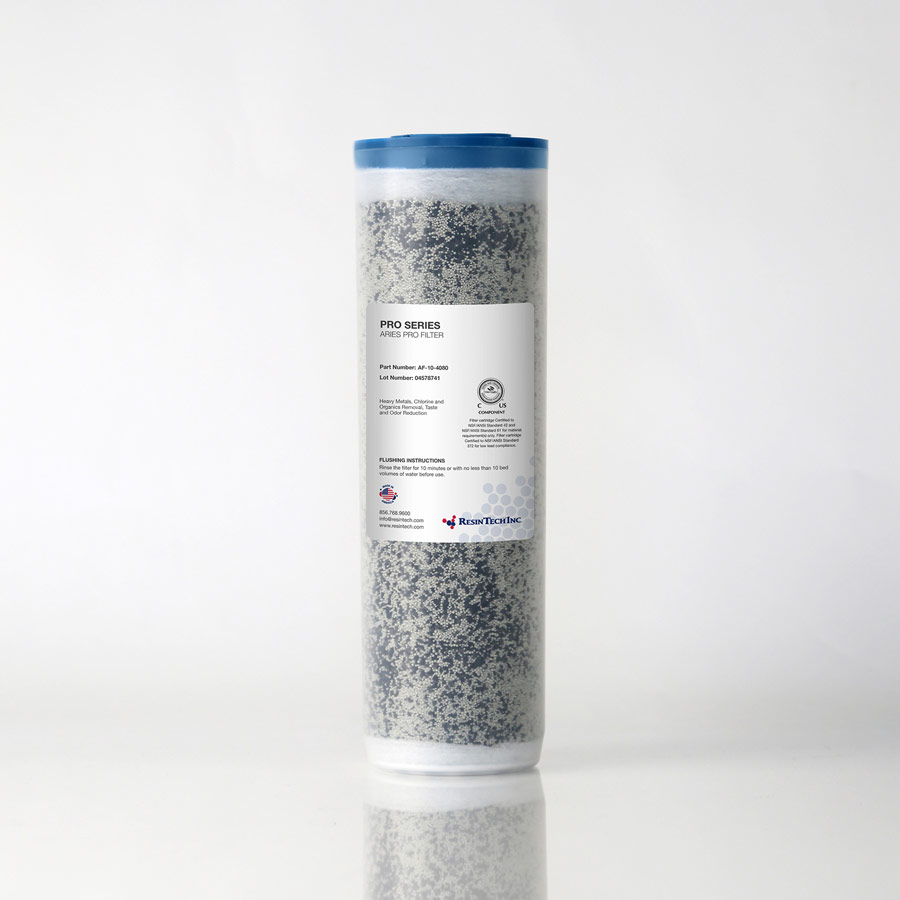

Aries 10" × 2½" Heavy Metals Removal Cartridge

Price:	$34.00
FREE Shipping with orders over $150 (details)
	Stock Item

Model # AF-10-4080
Brand Aries Filter Works

Cartridges Sold Individually

Case Quantity: 12

Qty:

Quantity Discounts

Units Ordered Individually
Case Quantity: 12 Units

Product Brochure for AF-10-4080

Made in the USA

Filtered Water Benefits the Whole Family

Order By The Case And Save! Free Shipping on Order Over $99

Do You Need A Whole Water Filter System?

We offer housing assemblies without cartridges so you can design your own system.

AF Series cartridges are double-open end cartridges that fit standard residential and industrial housings. Cartridges are available in 2-1/2" and 4-1/2" diameters and 5", 10" and 20" lengths. Using premium Resintech media and offering oversized cartridge cavities, AF Series cartridges provide the best in water purification and filtration.

Model	Dimensions	Flow Rate (GPM)		Capacity (gal)
Model	Dimensions	Operating	Maximum	Capacity (gal)
AF-10-4080	10" × 2-1/2"	0.05	0.11	330
AF-20-4080	20" × 2-1/2"	0.12	0.24	600
AF-10-4080-BB	10" × 4-1/2"	0.13	0.27	680
AF-20-4080-BB	20" × 4-1/2"	0.30	0.59	1,500

Product	Type	Ionic Form	Approx. Ship Wt (lbs)	Screen Size	pH Range
MBD-80	Metal selective ion exchange media mixed with GAC	H & Na	43	12-50 Nominal	0-14
MBD-80 is a proprietary blend of heavy metal selective ion exchange media and granular activated carbon that has been specially prepared for use in drinking water filters.

Shipping

Orders over $199 receive free UPS ground shipping in the continental U.S. (excluding Alaska). Exceptions exist, and additional freight charges will apply for some low priced, drop shipped items from Canada and for addresses that carry accessorial UPS charges, such as certain island destinations that require ferry service and other remote locations. We will notify you of any additional amount before it is charged.

For orders between $1 - $99, a flat shipping rate of $20.00 applies for UPS ground service. For orders between $100 - $199, a flat shipping rate of $12.00 applies for UPS ground service.

Next Day Air, 2nd Day Air & 3-Day Select delivery services are available at an additional cost.

We ship in stock items on the next business day in most cases. UPS Next Day Air and 2nd Day Air orders received before 3:00 pm Eastern Time can be shipped the same day, if ordered by phone and a request is made to expedite the order.

Please allow up to 10 business days, starting with the next business day after your order was placed, for delivery. Many orders will be received in less time. Back-ordered items may require extra time. Should any items in your order be delayed, we will contact you. If we can not deliver your order in this time frame, the order may be canceled prior to shipment, and a full refund will be credited.

Special order merchandise or custom-built equipment requires longer lead-time. Large orders and assembled whole house units are shipped via common carrier, stretch wrapped on a pallet.

We do not ship to P.O. boxes. Non-stock items are usually drop shipped.

Reduction Of Lead In Drinking Water Act

Lead In Drinking Water Act

In 2011 Congress enacted the Reduction of Lead in Drinking Water Act to amend the Safe Drinking Water Act's section regarding the use and introduction into commerce of lead pipes, plumbing fittings or fixtures, solder and flux. The Act established a prospective effective date of January 4, 2014, which provided a three year timeframe for affected parties to transition to the new requirements. All of the metal fixtures and fittings sold by H2O Distributors are compliant with this act.

[ Requires Adobe Acrobat Reader ]

Reduction of Lead in Drinking Water Act
More Information on Lead in Drinking Water

Made in the United States of America

H2O Distributors is proud to feature American-made products on its web site.
All such products will be marked with a icon.

Minimum Advertised Price (MAP) Policy

When prices are not shown on the product detail page, add the item to the shopping cart to view the price.

To see our "in-store" price on this product, you must add it to your Shopping Cart by clicking the Add to Cart button. Please be assured that adding an item to your cart does not obligate you to purchase it--you can always delete the item from your cart.

We are required by the manufacturer to do this to conform to their new "Minimum Advertised Price" (MAP) policy.

NSF Certification

NSF is widely recognized for its scientific and technical expertise in the health and environmental sciences. Its professional staff includes engineers, chemists, toxicologists, and environmental health professionals with broad experience both in public and private organizations. NSF certified products will be marked with a symbol.

NSF has earned the Collaborating Center designations by the World Health Organization (WHO) for Food and Water Safety and Indoor Environment.

More Infomation about NSF Certification Standards

Quick-Connect Instructions

Download Quick-Connect Instructions
Requires Adobe Acrobat Reader

Step 1 - Insert Tube

Fitting grips before it seals. Ensure tube is pushed into the tube stop.

Step 2 - Push Up to Tube Stop

Push the tube into the fitting, to the tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak-proof seal.

Step 3 - Pull To Check if Secure

Pull on the tube to check that it is secure. It is a good practice to test the system prior to leaving site and/or before use.

Step 4 - Disconnecting

To disconnect, ensure the system is depressurized before removing the tube. Push in collet squarely against face of fitting. With the collet held in this position, the tube can be removed. The fitting can then be re-used.

John Guest Quick-Connect Instructions

Download Quick-Connect Instructions
Requires Adobe Acrobat Reader

Step 1 - Insert Tube

Fitting grips before it seals. Ensure tube is pushed into the tube stop.

Step 2 - Push Up to Tube Stop

Push the tube into the fitting, to the tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak-proof seal.

Step 3 - Pull To Check if Secure

Pull on the tube to check that it is secure. It is a good practice to test the system prior to leaving site and/or before use.

Step 4 - Disconnecting

John Guest Quick-Connect

John Guest is the originator of Quick-Connect Fitting Technology and the world leader. John Guest Fittings, Valves & Tubing are produced in the UK to exacting quality standards that are second to none!

SharkBite Push-To-Connect Instructions

Download SharkBite Instructions
Requires Adobe Acrobat Reader

How To Install SharkBite Brass Push-To-Connect Fittings

SharkBite brass push-to-connect fittings create a seamless and easy transition between different types of pipe materials. No tools are required and the fittings can be even installed in wet lines. The fitting can be rotated after installation, so you can install without having to worry about how it's positioned. SharkBite fittings are also approved for behind the wall and underground installations. If the fitting is being installed for underground use, wrap with silicone self-adhesive tape before burying.

Step 1 - Identify the pipe material

To get started, identify the pipe material. SharkBite brass push-to-connect fittings are compatible with PEX, Copper, CPVC, PE-RT and HDPE pipe. SharkBite fittings come with a PEX stiffener pre-loaded into the fitting for PEX, PE-RT and HDPE. The PEX stiffener does not need to be removed for Copper or CPVC applications.

Step 2 - Cut pipe cleanly & squarely

Be sure the pipe is free of scratches or debris and cut the pipe as cleanly and squarely as possible. If you are working with copper pipe, use a deburr tool or sand paper to remove any sharp edges or burrs on the pipe. Failing to deburr the pipe properly can compromise the fitting.

Step 3 - Measure & mark the insertion depth

Use your SharkBite Deburr & Gauge Tool to measure and mark the insertion depth on your pipe.

Step 4 - Make the connection

Push the fitting to the insertion mark you just made on the pipe. Now, turn on the water and check the connection.

Removing SharkBite Fittings

Unlike other fittings, SharkBite brass push-to-connect fittings can be removed and re-used if changes are necessary. To remove the fitting, use a SharkBite Disconnect Clip or Disconnect Tongs. To use the Disconnect Clip, snap it on to the pipe and pull up to the release collar. Press the release collar using the Disconnect Clip and pull the pipe from the fitting. To use the Disconnect Tongs, slide the tongs over the fitting and the pipe. Squeeze the tongs to press the fitting’s release collar and pull the pipe from the fitting. The SharkBite Universal brass push-to-connect fitting is ready to re-use.

Water Quality Association's Gold Seal

The Water Quality Association's Gold Seal Certification Program is dedicated to providing public health and safety services throughout the USA and globally, while maintaining expert service, superior reputation, and fair pricing. The Gold Seal Program offers certification of all products and chemicals that contact drinking water.

WQA certified products will be marked with a symbol.

More Infomation about Water Quality Association
