Click for a larger image
| Price: | $66.00
|
FREE Shipping with orders over $150 (details) |
|
|
Stock Item
|
|

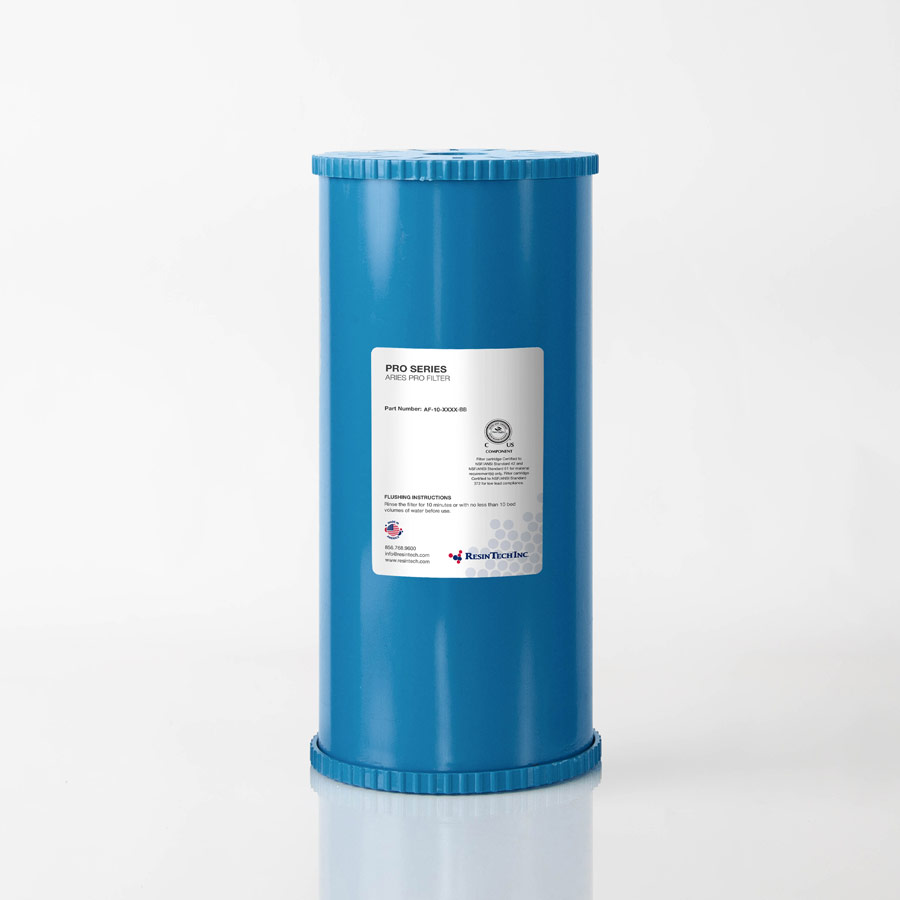

AF Series cartridges are double-open end cartridges that fit standard residential and industrial housings. Cartridges are available in 2-1/2" and 4-1/2" diameters and 5", 10" and 20" lengths. Using premium Resintech media and offering oversized cartridge cavities, AF Series cartridges provide the best in water purification and filtration.
This filter uses KDF media.
| Model | Dimensions | Amount of KDF | Flow Rate (GPM) | Capacity (gal) | |
|---|---|---|---|---|---|
| Operating | Maximum | ||||
| AF-10-2010 | 10" × 2-1/2" | 0.5 lbs. | 1.0 | 1.5 | 8,000 |
| AF-10-2011 | 10" × 2-1/2" | 1.0 lbs. | 1.0 | 1.5 | 15,000 |
| AF-20-2012 | 20" × 2-1/2" | 2.0 lbs. | 1.0 | 2.0 | 22,000 |
| AF-10-2012-BB | 10" × 4-1/2" | 2.0 lbs. | 2.0 | 4.0 | 35,000 |
| AF-20-2015-BB | 20" × 4-1/2" | 5.0 lbs. | 3.0 | 5.0 | 95,000 |
| Product | Type | Ionic Form | Approx. Ship Wt (lbs) | Screen Size | Water Retnetion | Total Exchange Capacity | Max. Operating Temp. (°F) |
|---|---|---|---|---|---|---|---|
| AGC-40 (Std, A, AD, AW) | Granular Activated Carbon | Na | Dry-28 Wet-38 |
+12 <5 -40 <5 |
Dry <5 Wet 30-40 |
Mine 900 Iodine No. |
250 |
| General-purpose coal-based granular activated carbon. Standard grade for low pressure and minimum fines. Available as dry or premoistened (dust free) and as standard or acid washed. | |||||||
| Product | Type | Ionic Form | Approx. Ship Wt (lbs) | Screen Size | Water Retnetion | Total Exchange Capacity | Max. Operating Temp. (°F) |
|---|---|---|---|---|---|---|---|
| AGC-50 (Std, A, AD, AW) | Granular Activated Carbon | Na | Dry-28 Wet-38 |
+20 <5 -50 <5 |
Dry <5 Wet 30-40 |
Mine 950 Iodine No. |
250 |
| General-purpose coal-based granular activated carbon. Standard grade for low pressure and minimum fines. Available as dry or premoistened (dust free) and as standard or acid washed. | |||||||
Download Quick-Connect Instructions
Requires Adobe Acrobat Reader
Fitting grips before it seals. Ensure tube is pushed into the tube stop.
Push the tube into the fitting, to the tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak-proof seal.
Pull on the tube to check that it is secure. It is a good practice to test the system prior to leaving site and/or before use.
To disconnect, ensure the system is depressurized before removing the tube. Push in collet squarely against face of fitting. With the collet held in this position, the tube can be removed. The fitting can then be re-used.
Download Quick-Connect Instructions
Requires Adobe Acrobat Reader
Fitting grips before it seals. Ensure tube is pushed into the tube stop.
Push the tube into the fitting, to the tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak-proof seal.
Pull on the tube to check that it is secure. It is a good practice to test the system prior to leaving site and/or before use.
To disconnect, ensure the system is depressurized before removing the tube. Push in collet squarely against face of fitting. With the collet held in this position, the tube can be removed. The fitting can then be re-used.
John Guest is the originator of Quick-Connect Fitting Technology and the world leader. John Guest Fittings, Valves & Tubing are produced in the UK to exacting quality standards that are second to none!
